4 1/4" Sq. Ornamental Low Voltage LED Lighted Combo Vinyl Post Cap For AZEK/TimberTech Post Sleeves (Warm White) (Warm White) Low Gloss White

4 1/4" Sq. Ornamental Low Voltage Combo Post Cap For TimberTech Post Sleeves - LMT 1796 (Low Gloss White)
Part Number: 1796-LOWGLOSSWHITE-3K
$68.92 each
$68.92 each
OR


Details

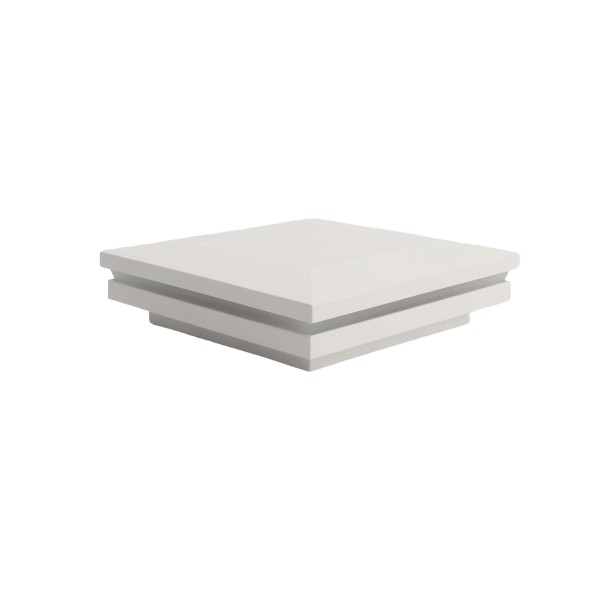

4 1/4" Sq. Ornamental Low Voltage LED Lighted Combo Vinyl Post Cap For AZEK/TimberTech Post Sleeves (Warm White) (Warm White) Low Gloss White

The Ornamental Low Voltage Combo Post Cap for TimberTech Post Sleeves by LMT uses energy efficient LED bulbs that output 3000 Kelvin, 90 Lumen light, bringing you a great looking post cap that illuminates both downwards towards the post on each side of the cap as well as outwards, providing your fence, deck or patio a beautiful, eye-catching glow. Designed for the sole purpose of matching your existing TimberTechling post sleeve, this cap comes in the Low Gloss White color that will seamlessly top off your post, while also giving each application a sleek and modern look. Additionally, the high-efficiency LED lights are perfect for energy conservation, giving out a brightness much greater than the wattage drawn. Designed and manufactured by LMT, meaning it will last for years to come!

Installation and wiring of this low voltage cap is quick and easy with the use of plug-and-play wiring, meaning no hard-wiring, wire-splicing or risk of electrical shock. The LED bulbs have two outputs (one for downwards lighting and one for outwards lighting) and are attached to a 2-way splitter that is included. After connecting all of the wires, simply slide your cap over the top of the TimberTech post sleeve and secure it by applying either vinyl adhesive for permanent attachment or silicone adhesive if you will need to remove the cap later on. Once your adhesive is dry, your post cap will be attached to your post sleeve and installation will be complete.

This Low Voltage Post Cap Requires a Specific 12V DC Transformer Power Supply (Sold Separately).

Features:

  • Color: Low Gloss White (Matches TimberTech)
  • Size: 4.25" Sq. (Fits 4.25" TimberTechSleeves)
  • Lighting Temperature: 3000 Kelvin, 90 Lumens
  • Wattage Draw: 1.6 Watts
  • Total Post Cap Height: 1.66"
  • Corner Radius: 0.02"
  • Extends 0.50" Over The Profile
  • Maximum Profile Dimensions: 4.55" Sq.

Harness Setup Manual

LED Post Cap Manual

TimberTecha registered trademark of AZEK Building Products, Inc.

Order In Multiples Of 6 To Avoid A Broken Box Fee (Priced Individually).
tooltip An additional fee is added for orders with less than 6 units at check out. Avoid the additional fee by ordering in quantities of 6.
SKU 1796-LOWGLOSSWHITE-3K
Country of Manufacture Made in the U.S.A. With U.S. and Global Materials
Lighting Style Standard
Style Ornamental
Manufacturer LMT Mercer Group, Inc.
Post Size 4.25" Sq. (Fits 4" OD Post Sleeves)
Color AZEK®/TimberTech® Coastal White
Color Temperature 3000 Kelvin (Warm White)
Bulb Integrated LED
Lumens 90 Lumens
Material Type Vinyl Body, Acrylic Lenses
Wattage Drawn 1.6 Watts
Voltage 12 V DC
Wire Lead 9" Wire Lead
